Cold Cathode UV Lamp(Straight Shaped)
發(fā)布于：22-12-09
隸屬于：Quartz Cold Cathode UV Lamp
Figure and specification of Quartz Cold Cathode UV Lamp

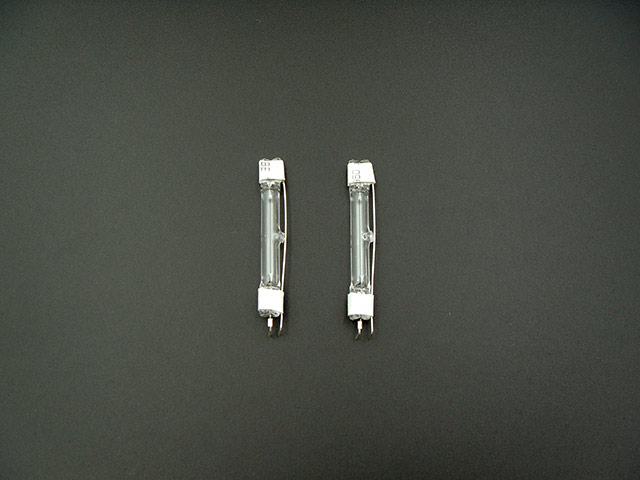

Straight-Shaped（Fig1）

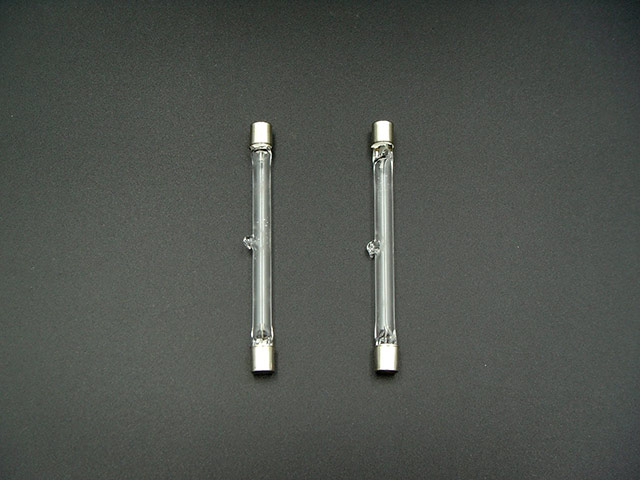

Straight-Shaped（Fig2）
Straight-Shaped（Fig3）
Specification of Quartz Cold Cathode UV Lamp
| Specification | Bulb dia(mm) | Overall length(mm) | Tube Voltage(V) | Tube Curtent(mA) | Power(W) | Strength of the Ultraviolet light | Life(h) | Note |
| Straight-Shaped | φ 5 | 42-500 | 230-900 | 2-10 | 0.6-9 | >1500 | 10000 | Fig1、2、3 |
| φ 6 | 42-500 | 200-800 | 3-10 | 0.7-8 | >2000 | 10000 | Fig1、2、3 |
* There are many kinds of ultraviolet lamps with uses.they can be provided in a complete set with other components and materials.As for lamp tubes, both straight tube & other shapes are available.Customers can choose at will.
